PNP - SW - 67" ARS 300 - Orange/Charcoal/White (E)
Advanced construction for today's demanding pilots
PATENTED quick assembly wings system EXCLUSIVE to Skywing

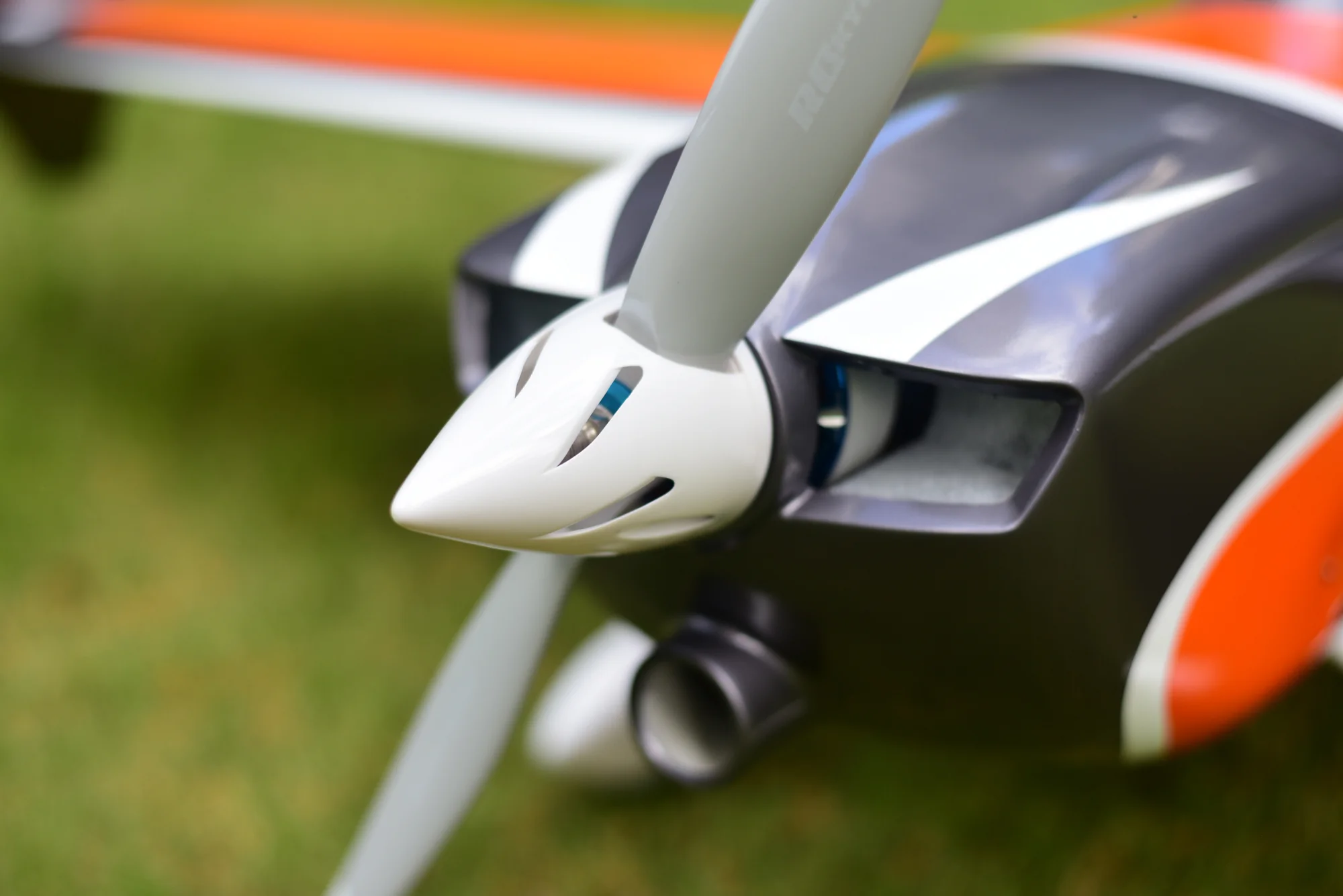

Factory assembled detailed canopy interior Pre-baffled cowling for maximum motor cooling
Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly
Wing bag, extensions and electric spinner - INCLUDED
V2 now updated for easier assembly and better performance!
Wingspan: 67 in.
Length: 66 in.
Wing Area: 849.8 sq. in.
Weight: 8-9lbs. depending on battery
PNP Includes:
(1) Skywing/Dualsky GA2000R
(1) Skywing/Hobbying 100a Platinum V3 ESC (BEC preprogrammed to 7.4v)
(4) Skywing/Theta SW989 digital high torque servos
(4) 1.25" Arms - tapped for 2.5mm hardware
(2) 18x10 electric propeller
Requires:
(1) 6s 4000-5000mah LiPo battery
MINIMUM 6+ channel radio and receiver
Basic Assembly:
1. Carefully unwrap and inspect all contents, make sure you don't discard any important parts.
2. Use low temp covering iron (and covering heat gun if necessary) to ensure all covering and trim pieces are tight and secure
3. Use blue/medium thread lock to install landing gear with included bolts. Double check wheels spin freely.
4. Carefully slide elevator/stab set all the way forward. Ensure it is seated completely before carefully gluing in place with thin CA.
5. Slide rudder hinges in place and ensure minimum gap/full throw without binding and when satisfied secure each hinge with thin CA.
6. Center the rudder and elevator servos electronically then attach servo arms as close to perpendicular to the servo case. Minor subtrim may be necessary but when satisfied secure the center screw and pinch bolt with a drop of blue/medium thread lock.
7. Install wing tube then slide wings in place. Make sure the wing locks are UP to accept the stud at the wing root and once seated completely slide locks DOWN to secure.
9. Attach SFG's/wing tips if you prefer a more stable aircraft at low speeds and high alpha. Loosen bolts at the wing tip, slide SFG/wing tip over and back then tighten thumb bolts. IT IS NOT NECESSARY TO OVERTIGHTEN THESE BOLTS
10. Ensure receiver is secure, battery is charged and secured at the correct location for the CG you prefer, install the canopy and ensure the spring latch is seated.
* It is HIGHLY recommended to use the included plug in capacitor as some radio/receiver systems are sensitive to spikes in voltage *
ARS Scheme D colors include:
Oracover:
White - 10
Royal (neon green) - 28-042
Corsair Blue - 19
Light Green (darker green) - 40-042
ARS Scheme E colors include
Oracover:
White - 10
Skywing Specialized:
Orange - SW-02
Metal Grey - SW - 04
$463.75
Original: $1,324.99
-65%PNP - SW - 67" ARS 300 - Orange/Charcoal/White (E)—
$1,324.99
$463.75More Images
PNP - SW - 67" ARS 300 - Orange/Charcoal/White (E)
Advanced construction for today's demanding pilots
PATENTED quick assembly wings system EXCLUSIVE to Skywing
Factory assembled detailed canopy interior Pre-baffled cowling for maximum motor cooling
Incredible value with carbon fiber wing tube, landing gear and tailwheel assembly
Wing bag, extensions and electric spinner - INCLUDED
V2 now updated for easier assembly and better performance!
Wingspan: 67 in.
Length: 66 in.
Wing Area: 849.8 sq. in.
Weight: 8-9lbs. depending on battery
PNP Includes:
(1) Skywing/Dualsky GA2000R
(1) Skywing/Hobbying 100a Platinum V3 ESC (BEC preprogrammed to 7.4v)
(4) Skywing/Theta SW989 digital high torque servos
(4) 1.25" Arms - tapped for 2.5mm hardware
(2) 18x10 electric propeller
Requires:
(1) 6s 4000-5000mah LiPo battery
MINIMUM 6+ channel radio and receiver
Basic Assembly:
1. Carefully unwrap and inspect all contents, make sure you don't discard any important parts.
2. Use low temp covering iron (and covering heat gun if necessary) to ensure all covering and trim pieces are tight and secure
3. Use blue/medium thread lock to install landing gear with included bolts. Double check wheels spin freely.
4. Carefully slide elevator/stab set all the way forward. Ensure it is seated completely before carefully gluing in place with thin CA.
5. Slide rudder hinges in place and ensure minimum gap/full throw without binding and when satisfied secure each hinge with thin CA.
6. Center the rudder and elevator servos electronically then attach servo arms as close to perpendicular to the servo case. Minor subtrim may be necessary but when satisfied secure the center screw and pinch bolt with a drop of blue/medium thread lock.
7. Install wing tube then slide wings in place. Make sure the wing locks are UP to accept the stud at the wing root and once seated completely slide locks DOWN to secure.
9. Attach SFG's/wing tips if you prefer a more stable aircraft at low speeds and high alpha. Loosen bolts at the wing tip, slide SFG/wing tip over and back then tighten thumb bolts. IT IS NOT NECESSARY TO OVERTIGHTEN THESE BOLTS
10. Ensure receiver is secure, battery is charged and secured at the correct location for the CG you prefer, install the canopy and ensure the spring latch is seated.
* It is HIGHLY recommended to use the included plug in capacitor as some radio/receiver systems are sensitive to spikes in voltage *
ARS Scheme D colors include:
Oracover:
White - 10
Royal (neon green) - 28-042
Corsair Blue - 19
Light Green (darker green) - 40-042
ARS Scheme E colors include
Oracover:
White - 10
Skywing Specialized:
Orange - SW-02
Metal Grey - SW - 04
